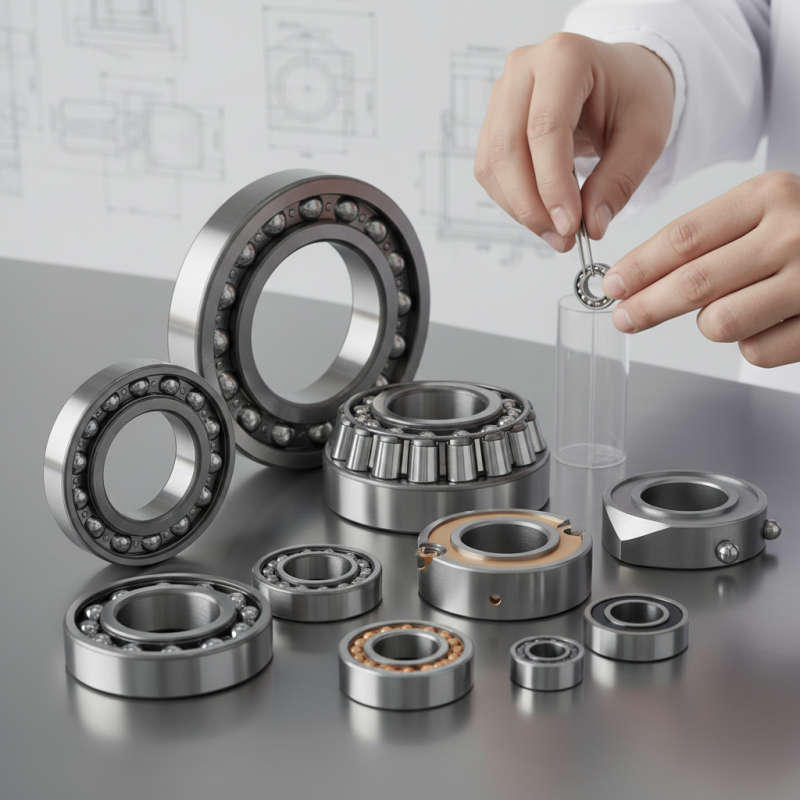

What Are the Different Types of Ball Bearings?

Ball Bearings are critical components in many industries, influencing performance and efficiency. According to a report by MarketsandMarkets, the global ball bearing market is expected to reach $15.4 billion by 2027, growing steadily due to demand for advanced technologies. Different types of ball bearings serve varying functions across applications, from automotive to aerospace.

John Smith, a bearing technology expert, states, “The choice of bearing directly impacts the machinery's lifespan and productivity.” His insights reflect the complexity of selecting the right ball bearing. With diverse designs like deep groove, angular contact, and thrust ball bearings, the understanding of each type can often be overwhelming.

While technological advancements drive innovations in ball bearing designs, flaws still persist in material selection and quality assurance. Manufacturers often struggle to balance cost and high-performance needs, which can lead to subpar products entering the market. This ongoing challenge reminds us that critical thinking is essential in the ball bearing industry. The interplay of technology and tradition necessitates continuous evaluation and adaptation to meet evolving industry standards.

Types of Ball Bearings: An Overview of Their Functions

Ball bearings are essential components in many machines. They reduce friction between moving parts. Each type of ball bearing has a unique function, serving various applications. For example, deep groove ball bearings are versatile. They are commonly used in electric motors and household appliances. Their design allows for both radial and axial loads.

Angular contact ball bearings feature a different design. They are suited for high-speed applications. These bearings can handle greater thrust loads. The angle of contact allows them to manage forces effectively. Industries often use them in gearboxes and pumps. This specific function highlights their importance in precision engineering.

Self-aligning ball bearings address misalignment issues. They contain two rows of balls and a common sphere raceway. This design allows for some degree of shaft misalignment. This is beneficial in applications where perfect alignment is unattainable. However, the potential for wear needs monitoring. Regular maintenance is crucial. Lack of it may lead to premature failure. Understanding these nuances can improve their application and longevity.

Classification Based on Design: Deep Groove, Angular Contact, and More

Ball bearings come in various designs, each serving specific applications and performance needs. Deep groove ball bearings are among the most common. They can handle radial and axial loads in both directions. According to a report from the International Bearing Industry Association, deep groove bearings account for about 80% of all ball bearings produced globally. They are versatile and can be found in everything from electric motors to automotive applications.

Angular contact ball bearings have a different design. They can support higher axial loads and are often used in pairs. This type enables closer spacing of the balls, which optimizes load distribution. Though they are efficient, their complexity can be a downside. Sometimes, improper alignment leads to quick wear. Choosing the right bearing requires careful consideration of application needs. Missteps can result in costly machine downtime.

Thrust ball bearings are designed to accommodate axial loads only. They are typically used in situations where load direction is consistent. While they simplify design, they can be vulnerable to misalignment. Industry data suggest that utilizing the wrong type of bearing can increase resistance and heat generation. This may lead to premature failure in high-speed applications. Users must evaluate their operational environment before selecting a bearing type.

Material Variations: Steel, Ceramic, and Polymer Ball Bearings

Ball bearings are essential in various machinery, impacting efficiency and performance. The materials used to manufacture them can significantly affect their durability and application. Among the common types, steel, ceramic, and polymer ball bearings are prominent choices. Each material has unique properties that cater to different requirements.

Steel ball bearings are robust and widely used in industrial applications. They are known for their strength and resistance to wear. Reports indicate that steel bearings account for over 70% of the global market. However, they can rust in humid environments, which is a definite drawback that must be addressed.

Ceramic ball bearings offer a lightweight alternative. They provide excellent resistance to corrosion and can withstand higher temperatures. Research shows that ceramic bearings can last five times longer than their steel counterparts. However, their cost can be prohibitive for some applications, leaving users to weigh their options carefully.

Polymer ball bearings are emerging as a viable choice for specific applications. They are lightweight and resistant to chemicals. Yet, they may not handle heavy loads as effectively as steel or ceramic options. Balancing performance and cost must be a thoughtful consideration in material selection. Each option has its pros and cons, inviting further reflection on the best fit for specific uses.

Applications of Different Ball Bearings in Various Industries

Ball bearings play a vital role in various industries, ensuring smooth operation of machinery and equipment. In automotive applications, ball bearings are crucial for wheel hubs and electric motors. According to a recent industry report, they improve component life by up to 40%. This efficiency is essential as vehicles become more advanced, relying on precision parts.

In manufacturing, ball bearings support conveyor systems. They reduce friction, allowing heavy loads to move easily. The global market for industrial bearings is projected to reach $90 billion by 2025. This growth reflects the increasing demand for reliable machinery in manufacturing processes. Additionally, in the aerospace industry, lightweight ball bearings contribute to fuel efficiency, making aircraft more economical.

Tip: Regular maintenance of ball bearings can extend their life span. Checking for wear and replacing them when necessary can save costs. Small details matter.

In robotics, the precision of ball bearings can enhance performance. Misalignment can cause failures, underlining the need for quality components. A study found that 10% of system failures stem from substandard bearings. This impacts productivity and safety in automated environments.

Tip: Invest time in selecting the right type of bearing for specific applications. The right choice can prevent costly errors and downtime.

Advantages and Limitations of Each Ball Bearing Type

Ball bearings come in various types, each with distinct advantages and limitations. For instance, deep groove ball bearings are versatile and widely used. They handle both radial and axial loads well. Their simplicity makes installation easy. However, they may not excel in high-speed applications. This can limit their effectiveness in certain settings.

On the other hand, angular contact ball bearings are designed for handling axial loads in one direction. They offer higher precision and stability. This makes them suitable for high-speed applications. Yet, they require careful mounting. Improper installation can lead to premature wear.

Another common type is self-aligning ball bearings. They can tolerate shaft misalignment. This is beneficial in applications with vibrations. However, they have a lower load-carrying capacity. Each type has its strengths but also its weaknesses. It's crucial to evaluate the specific needs of your application.
