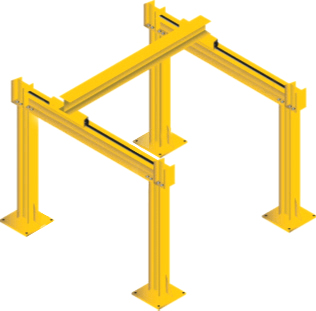

Our free-standing manual top running cell cranes are ideal for welding stations, assembly cells, machining centers and more. Bridge is designed to move easily under load. All structural steel, this crane is designed for heavy duty applications.

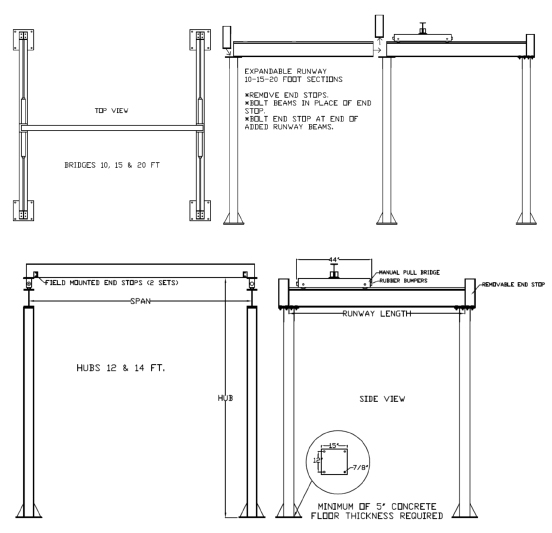

Bridge lengths are 10, 15 and 20 ft. Bridge includes tagline. Standard heights under beam (HUB) are 12 and 14 ft. Runway lengths are 10, 15 and 20 ft. lengths. Runways are easily expandable by simply removing the end stops—bolting beams to columns and replacing end stops.
Need to do a custom application or design? Contact us for a quote.
Runway Adder (Includes the items below)
- (2) runway beams
- (2) support columns
Optional Runway Electrification (Includes the items below)
- C-Track
- Trolleys
- 12AWG-4 cond. flatwire
- Web mount brackets
- All necessary hardware
NOTES:
- One 1 Ton Bridge per cell bay only.
- Consult a professional engineer to assure all local codes and ordinances are met. Bracing to building for additional rigidity by others if desired.
| CAPACITY LBS |
MODEL # | BRIDGE SPAN | RUNWAY LENGTH | HUB | BRIDGE BEAM FLANGE | WEIGHT |
| 2,000 | CC1010-12 | 10′ | 10′ | 12′ | 5 ¾” | 2,285 # |
| 2,000 | CC1015-12 | 10′ | 15′ | 12′ | 5 ¾” | 2,579 # |
| 2,000 | CC1020-12 | 10′ | 20′ | 12′ | 5 ¾” | 2,873 # |
| 2,000 | CC1010-14 | 10′ | 10′ | 14′ | 5 ¾” | 2,481 # |
| 2,000 | CC1015-14 | 10′ | 15′ | 14′ | 5 ¾” | 2,775 # |
| 2,000 | CC1020-14 | 10′ | 20′ | 14′ | 5 ¾” | 3,069 # |
| CAPACITY LBS |
MODEL # | BRIDGE SPAN | RUNWAY LENGTH | HUB | BRIDGE BEAM FLANGE | WEIGHT |
| 2,000 | CC1510-12 | 15′ | 10′ | 12′ | 5 ¾” | 2,415 # |
| 2,000 | CC1515-12 | 15′ | 15′ | 12′ | 5 ¾” | 2,709 # |
| 2,000 | CC1520-12 | 15′ | 20′ | 12′ | 5 ¾” | 3,003 # |
| 2,000 | CC1510-14 | 15′ | 10′ | 14′ | 5 ¾” | 2,611 # |
| 2,000 | CC1515-14 | 15′ | 15′ | 14′ | 5 ¾” | 2,905 # |
| 2,000 | CC1520-14 | 15′ | 20′ | 14′ | 5 ¾” | 3,199 # |
| CAPACITY LBS |
MODEL # | BRIDGE SPAN | RUNWAY LENGTH | HUB | BRIDGE BEAM FLANGE | WEIGHT |
| 2,000 | CC2010-12 | 20′ | 10′ | 12′ | 5 ¾” | 2,545 # |
| 2,000 | CC2015-12 | 20′ | 15′ | 12′ | 5 ¾” | 2,839 # |
| 2,000 | CC2020-12 | 20′ | 20′ | 12′ | 5 ¾” | 3,133 # |
| 2,000 | CC2010-14 | 20′ | 10′ | 14′ | 5 ¾” | 2,741 # |
| 2,000 | CC2015-14 | 20′ | 15′ | 14′ | 5 ¾” | 3,035 # |
| 2,000 | CC2020-14 | 20′ | 20′ | 14′ | 5 ¾” | 3,329 # |
| MODEL # | RUNWAY LENGTH | HUB | WEIGHT | |||
| CCRW-10-12 | 10′ | 12′ | 1,156 # | |||
| CCRW-15-12 | 15′ | 12′ | 1,450 # | |||
| CCRW-20-12 | 20′ | 12′ | 1,744 # | |||
| CCRW-10-14 | 10′ | 14′ | 1,254 # | |||
| CCRW-15-14 | 15′ | 14′ | 1,548 # | |||
| CCRW-20-14 | 20′ | 14′ | 1,842 # |
