H-Series 3 Ton Jib Cranes
H SERIES

All Lift Cranes® Heavy Duty Floor Mounted H-Series 3 Ton Jib Cranes have a heavy wall structural steel pipe mast with a reinforced large diameter base plate. This allows for minimal deflection and continuous alignment. Durable and long lasting, these overhead floor cranes feature a 360° rotating, rolled steel I-beam section with tapered flange for smooth trolley travel. Safety end stops, at both ends of boom, ensure limited trolley travel. Heavy Duty Jibs have a 48” diameter base and 44” bolt circle, or 54” diameter base and 50” bolt circle with 12 holes measuring 1¼“ each.

Application
Industrial, warehouse, and anywhere you would need heavy lifting would be appropriate applications for this Heavy Duty Jib.

Need to do a custom application or design? Contact us for a quote.



Request a Quote



Range
  • Min. 10’ HUB – 8’ Span
  • Max. 20’ HUB – 20’ Span
Other Capacities
Additional Options
  • Tagline Kits with S-Hooks
  • Bolt Pattern Templates
  • Outdoor & Stainless Steel Applications
  • Hoist and Trolleys
  • Top Entry Collector Ring
  • Bottom Entry Collector Ring
  • Motorized Rotation
Installation Requirements
  • 4’ deep by 7’ square, 4’ deep by 8’ square, or 4’ deep by 9’ square cement foundation, depending on base plate.
  • 3000 psi of compressive force-reinforced rebar 3/4” diameter on top and bottom, 12” on center.



CAPACITY
LBS		 MODEL # HUB SPAN BEAM
HEIGHT		 FLANGE
WIDTH		 BASE
DIA		 UNIT
WEIGHT
6,000 H6108 10′ 8′ 16″ 7″ 48″ 2,021 #
6,000 H61010 10′ 10′ 16″ 7″ 48″ 2,101 #
6,000 H61012 10′ 12′ 16″ 7″ 48″ 2,757 #
6,000 H61014 10′ 14′ 21″ 6 ½” 48″ 3,078 #
6,000 H61016 10′ 16′ 24″ 7″ 48″ 3,850 #
6,000 H61018 10′ 18′ 24″ 9″ 54″ 4,507 #
6,000 H61020 10′ 20′ 24″ 9″ 54″ 5,071 #
CAPACITY
LBS		 MODEL # HUB SPAN BEAM
HEIGHT		 FLANGE
WIDTH		 BASE
DIA		 UNIT
WEIGHT
6,000 H6128 12′ 8′ 16″ 7″ 48″ 2,146 #
6,000 H61210 12′ 10′ 16″ 7″ 48″ 2,226 #
6,000 H61212 12′ 12′ 16″ 7″ 48″ 2,898 #
6,000 H61214 12′ 14′ 21″ 6 ½” 48″ 3,219 #
6,000 H61216 12′ 16′ 24″ 7″ 48″ 4,059 #
6,000 H61218 12′ 18′ 24″ 9″ 54″ 4,715 #
6,000 H61220 12′ 20′ 24″ 9″ 54″ 5,322 #
CAPACITY
LBS		 MODEL # HUB SPAN BEAM
HEIGHT		 FLANGE
WIDTH		 BASE
DIA		 UNIT
WEIGHT
6,000 H6148 14′ 8′ 16″ 7″ 48″ 2,271 #
6,000 H61410 14′ 10′ 16″ 7″ 48″ 2,351 #
6,000 H61412 14′ 12′ 16″ 7″ 48″ 3,039 #
6,000 H61414 14′ 14′ 21″ 6 ½” 48″ 3,360 #
6,000 H61416 14′ 16′ 24″ 7″ 48″ 4,267 #
6,000 H61418 14′ 18′ 24″ 9″ 54″ 4,923 #
6,000 H61420 14′ 20′ 24″ 9″ 54″ 5,574 #
CAPACITY
LBS		 MODEL # HUB SPAN BEAM
HEIGHT		 FLANGE
WIDTH		 BASE
DIA		 UNIT
WEIGHT
6,000 H61610 16′ 10′ 16″ 7″ 48″ 2,453 #
6,000 H61612 16′ 12′ 16″ 7″ 48″ 3,140 #
6,000 H61614 16′ 14′ 21″ 6 ½” 48″ 3,453 #
6,000 H61616 16′ 16′ 24″ 7″ 48″ 4,475 #
6,000 H61618 16′ 18′ 24″ 9″ 54″ 5,671 #
6,000 H61620 16′ 20′ 24″ 9″ 54″ 5,823 #
CAPACITY
LBS		 MODEL # HUB SPAN BEAM
HEIGHT		 FLANGE
WIDTH		 BASE
DIA		 UNIT
WEIGHT
6,000 H61810 18′ 10′ 16″ 7″ 48″ 2,578 #
6,000 H61812 18′ 12′ 16″ 7″ 48″ 3,281 #
6,000 H61814 18′ 14′ 21″ 6 ½” 54″ 4,723 #
6,000 H61816 18′ 16′ 24″ 9″ 54″ 5,772 #
6,000 H61818 18′ 18′ 24″ 9″ 54″ 5,924 #
6,000 H61820 18′ 20′ 24″ 9″ 54″ 6,076 #
CAPACITY
LBS		 MODEL # HUB SPAN BEAM
HEIGHT		 FLANGE
WIDTH		 BASE
DIA		 UNIT
WEIGHT
6,000 H62010 20′ 10′ 16″ 7″ 48″ 2,703 #
6,000 H62012 20′ 12′ 21″ 6 ½” 54″ 4,817 #
6,000 H62014 20′ 14′ 21″ 6 ½” 54″ 4,931 #
6,000 H62016 20′ 16′ 24″ 9″ 54″ 6,023 #
6,000 H62018 20′ 18′ 24″ 9″ 54″ 6,175 #
6,000 H62020 20′ 20′ 24″ 9″ 54″ 6,327 #



NOTES:

  • All Foundations should be checked by a Local Engineer

DEFINITION OF TERMS:

  • Top Entry Collector Ring (Holds electric power cord in order to allow for a smooth, uninterrupted 360° rotation of Jib)
  • HUB (height under beam)
  • Span (length from column center to the end of the beam)

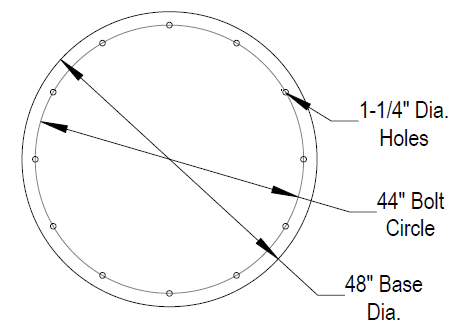

48″ Diameter Base

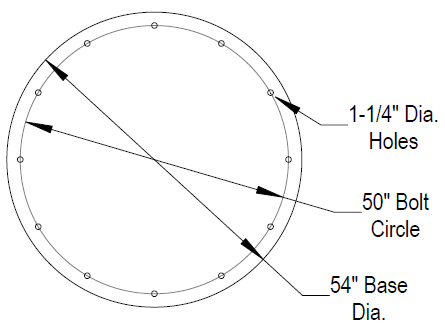

54″ Diameter Base
